GS系列无刷励磁同步电机技术参数
| 型号 | 50Hz 1500rpm | 60Hz 1800rpm | 功率因素(cosφ) | 相数 | ||||
| 额定功率(kW) | 额定电压(V) | 额定电流(A) | 额定功率(kW) | 额定电压(V) | 额定电流(A) | |||
| GS180MCD | 20 | 230 | 87.0 | 24 | 120/240 | 200/100 | 1.0 | single-phase |
| GS180MCS | ||||||||
| GS180LAD | 24 | 104.3 | 30 | 250/125 | ||||
| GS180LAS | ||||||||
| GS180LBD | 30 | 130.4 | 40 | 333.3/166.7 | ||||
| GS180LBS | ||||||||
| GS180MAS | 12 | 400 | 21.7 | 16 | 440/480 | 26.2/24.1 | 0.8 | three-phase |
| GS180MAD | 16 | 28.9 | 20 | 32.8/30.0 | ||||
| GS180MBS | ||||||||
| GS180MBD | 20 | 36.1 | 24 | 39.4/36.1 | ||||
| GS180MCS | ||||||||
| GS180MCD | 24 | 43.3 | 30 | 49.2/45.1 | ||||
| GS180LAS | ||||||||
| GS180LAD | 30 | 54.1 | 40 | 65.6/60.1 | ||||
| GS180LBS | ||||||||
| GS180LBD | 40 | 72.2 | 50 | 82.0/75.2 | ||||
| GS225MAS | 50 | 400 | 90.2 | 64 | 440/480 | 105.0/96.2 | 0.8 | three-phase |
| GS225MAD | 60 | 108.3 | 60 | 98.4/90.2 | ||||
| GS225MBS | 64 | 115.5 | 75 | 123.0/112.8 | ||||
| GS225MBD | 75 | 135.3 | ||||||
| GS225MCS | 75 | 135.3 | 84 | 137.8/126.3 | ||||
| GS225MCD | 84 | 151.6 | 84 | 137.8/126.3 | ||||
| GS225LAS | 90 | 162.4 | 90 | 147.6/135.3 | ||||
| GS225LAD | ||||||||
| GS225LBS | 95 | 171.4 | 100 | 164.0/150.4 | ||||
| GS225LBD | 100 | 180.4 | ||||||
| GS225LCS | 120 | 196.8/180.4 | ||||||
| GS225LCD | 110 | 198.5 | ||||||
| GS250LAS | 120 | 216.5 | 140 | 229.6/210.5 | ||||
| GS250LBS | 150 | 270.6 | 180 | 295.0/270.6 | ||||

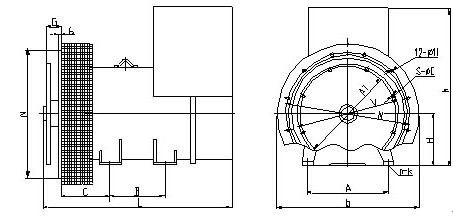

GS系列无刷励磁同步发电机外形尺寸(单轴承结构)
| 型号 | A | B | C | H | L |
SAE NO.和 M尺寸 |
N | N-K | b | h |
发电机联轴 器片尺寸 |
|||
|
GS180MAD GS180MBD GS180MCD |
279 | 190 | 168 | 180 | 650 |
SAE2:Φ447.6 SAE3:Φ409.5 |
Φ466.72 Φ428.62 |
4-Φ13 | Φ490 | 430 |
SAE NO. |
10 | 11 1/2 | 14 |
| GS180LAD | 240 | 700 | V | 341.3 | 352.4 | 466.7 | ||||||||
| GS180LBD | 290 | 750 | ||||||||||||
|
GS225MAD GS225MBD GS225MCD |
356 | 270 | 197 | 225 | 800 |
SAE1:Φ511.1 SAE2:Φ447.6 |
Φ530.22 Φ466.72 |
4-Φ17 | Φ560 | 590 | AT | 295.3 | 333.4 | 438.2 |
|
GS225LAD GS225LBD GS225LCD |
900 | G | 53.8 | 39.6 | 25.4 | |||||||||
| GSD180MCD | 279 | 190 | 168 | 180 | 650 |
SAE2:Φ447.6 SAE3:Φ409.5 |
Φ466.72 Φ428.62 |
4-Φ13 | Φ490 | 430 | S-E | 8-Φ11 | 8-Φ11 | 8-Φ14 |
| GSD180LAD | 240 | 700 |
|
|||||||||||
| GSD180LBD | 290 | 750 | ||||||||||||
GS系列无刷励磁同步发电机外形尺寸(双轴承结构)
| 型号 | A | B | C | D | E | F | G | H | 4-K | L | M | N | n-m | R | b |
|
GS180MAS GS180MBS GS180MCS |
279 | 190 | 150 | Φ48 | 110 | 14 | 42.5 | 180 | Φ13 | 680 | Φ230 | Φ265 | 4-M12 | 5 | Φ370 |
| GS180LAS | 240 | 110 | 730 | Φ250 | Φ300 | 4-M16 | |||||||||
| GS180LBS | 290 | 780 | |||||||||||||
|
GS225MAS GS225MBS GS225MCS |
356 | 270 | 166 | Φ60 | 105 | 18 | 53.5 | 225 | Φ17 | 800 | Φ409.6 | Φ428.6 | 12-M10 | 6 | Φ490 |
|
GS225LAS GS225LBS GS225LCS |
900 | ||||||||||||||
|
GS250LAS GS250LBS |
420 | 420 | 200 | Φ70 | 140 | 20 | 62.5 | 250 | Φ22 | 1080 | Φ445.0 | Φ475 | 12-M12 | 6 | Φ550 |
| GSD180MCS | 279 | 190 | 150 | Φ48 | 110 | 14 | 42.5 | 180 | Φ13 | 680 | Φ230 | Φ265 | 4-M12 | 5 | Φ370 |
| GSD180LAS | 240 | 730 | Φ250 | Φ300 | 4-M16 | ||||||||||
| GSD180LBS | 290 | 780 |
